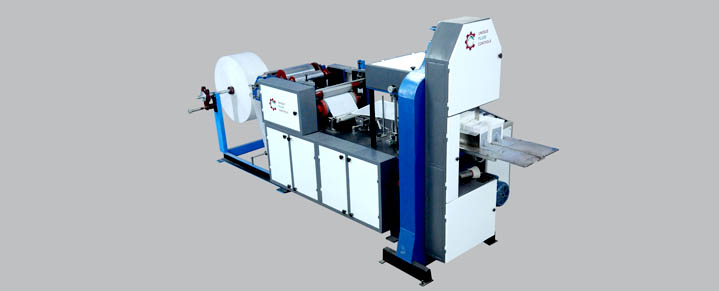

Tissue paper Making Machine

Paper Tissue Paper Making Machine that is available in various shapes and sizes. Our Paper Napkin Machine is manufactured using high quality base materials due to which it is highly efficient and thus renders consistent performance. Apart from the above, we provide Paper Napkin Machine at the most discounted price in the industry. Our Variable Size Paper Napkin Machine is constructed from quality components as base materials that offer a durable structure.
Further, the Paper Napkins are soft to feel and very gentle on the skin. Our Napkin Paper are always available with leading outlets in following different sizes.

Color Printing Embossing Napkin Folding Machine is to cut through the paper tray after printing, embossing and automaticallyfolded into a square or rectangular-shaped napkin open. Clear and bright with printing, overlay accuracy, high speed stationary,is the processing of special equipment for high-grade napkins.

Main function characteristics:

  • Transmission belt drive configuration.
  • Color printing device adopts flexible printing, the design can be flexibly according to you need replace, use professionalcolor printing anilox string ink roller
  • Electronic counting dislocation row of output
  • Folding board with mechanical hand with the folded shape, cutting through the band saw cutter
  • Other standard models can be customized

Features

  • Perfect finish
  • High tolerance

Technical Specifications of Tissue Paper making Machine

Parent Roll Width 20cm/22cm/24cm/27cm/30cm/33cm/44cm
Parent Roll Diameter 1200mm
Printing Unit Single / Double Printing
Embossing Unit Single / Double Embossing
Folding Size 1/4mm
Speed 30000 / Hour
Power Required 450 GSM
Speed Variable Speed
Production Capacity / Hour 3000 Sheets/hour
Power 220 VAC Single Phase
Power Consuption 2.5 Unit/Hour
Total Electic Load 3 kW
Controlling System Separate Control Panel
Transmission Timing Belts
Counting Digital Auto Counter
Embossing Design As per Requirement
Machine Motor 2 HP/DC Motor
Band Saw Cutter Motor 2 HP/AC Motor
Speed Controller Variable Pulley
Weight 2200 Kgs 2400 Kgs
